BD Loops 6′ x 14′ Preformed Direct Burial 40 Foot Loop

Description

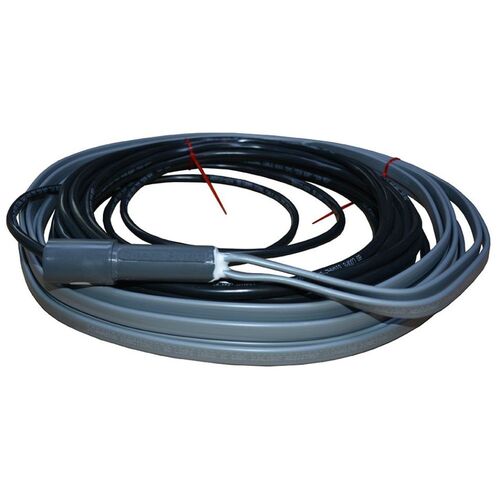

BD Loops 6′ x 14′ Preformed Direct Burial 40 Foot Loop

Used for installations under concrete, asphalt, pavers, or in gravel roads. The most common installation is the loop tied directly to the rebar before concrete is poured. The wire is designed for a direct burial application. Unlike loops wrapped through PVC, The BD Loops Direct Burial Loop does not have an air pocket resulting in fewer repeat service calls due to phantom detections caused by ground vibration.

Direct Burial loops are built with Solid 16AWG to create a tough rigid product that won’t fall below the rebar pattern. Installing a BD Loops Direct Burial loop over rebar is a snap! Simply offset the loop from the rebar pattern and tie it down with the supplied cable ties.

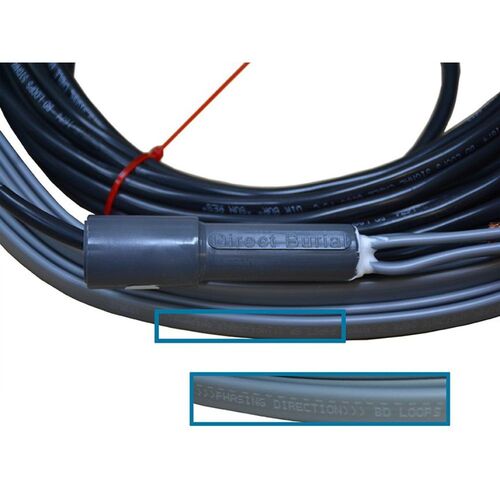

The loop wire has arrows indicating the direction of current and the lead-in is red/black allowing easy understanding of phasing. Twisted jacketed lead-in prevents “coil back” from the normal twisted lead-in, preventing wasted time untangling lead-in wires.

Each direct burial loop comes with an installation kit including easy-to-follow instructions, cable ties for installation on top of rebar, ground stakes for laying out the loop on gravel and dirt roads (remove ground stakes before burying the loop), and stickers for easy identification after the loops have been installed.

Product Literature

• BD Loops Preformed Direct Burial Loop Product Guide
• BD Loops Preformed Direct Burial Loop Installation Instructions
