BD Loops 6′ x 16′ Preformed 3/16″ Saw-cut 44 Foot Loop

Description

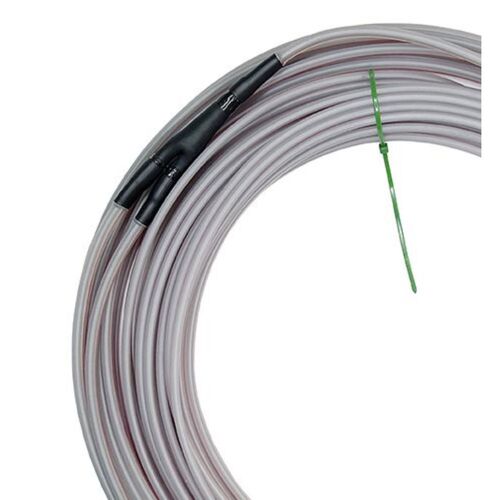

BD Loops 6′ x 16′ Preformed 3/16″ Saw-cut 44 Foot Loop

Used for saw-cut installations where a 3/16” or larger groove is cut into the concrete or asphalt and the wire is stuffed and sealed (using loop sealant) into the surface.

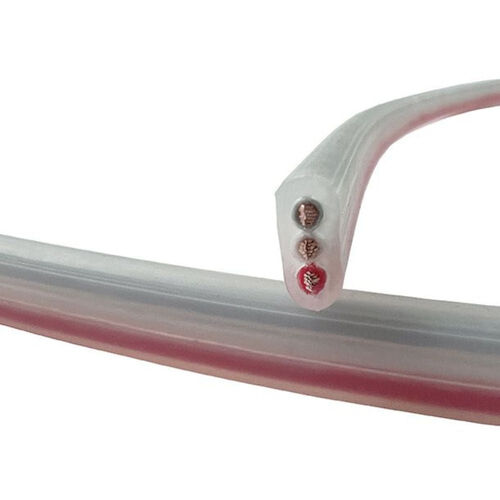

Saw-cut loops have a custom durable polyethylene outer jacket that protects nylon-coated polyethylene insulated 16AWG stranded wire. BD Loops Saw-Cut Loops have a built-in wing-shaped backer-rod that causes the loop to fit snugly in a 3/16” saw-cut groove. The unique wire design prevents the installer from having to install a backer-rod and creates a seal at the bottom of the groove, allowing the installer to apply a sealant to a flat surface and resulting in at least a 30% savings in loop sealant to seal the groove vs. hand wrapped wires in a ¼” wide groove.

The entire loop including the lead-in fits within a 3/16” saw-cut groove preventing wasted time spent double saw-cutting or doubling blades to cut the home run lead-in.

Product Literature

• BD Loops Preformed 3/16″ Sawcut Loops Product Guide
• BD Loops Preformed 3/16″ Sawcut Loops Installation Instructions
