EMX Retro-Reflective Photo Eye | EMX-IRB-RET2

Description

EMX Retro-Reflective Photo Eye | EMX-IRB-RET2

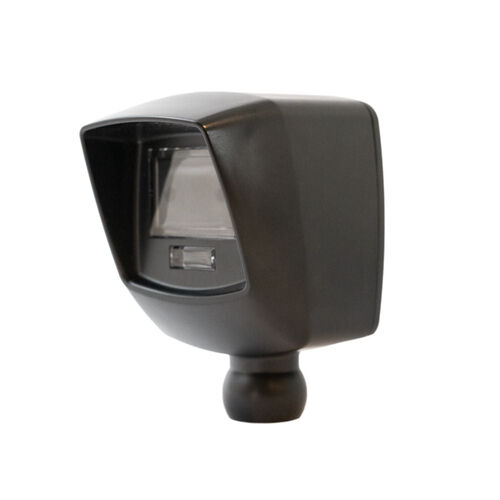

The IRB-RET2 retroreflective, infrared photo-eye is an external entrapment protection device type B1, a non-contact sensor for use with automatic gates and doors. The reflector directs the beam back to the photo eye, therefore wiring to the other side of the roadway is not needed. The IRB-RET2 is compatible with most operators that accommodate monitored external entrapment devices per UL325. (six monitoring methods are available) The IRB-RET2 operates up to 60 feet over a wide range of voltages (6- 40 VDC and 12-24 VAC). A red alignment indicator on the receiver provides easy set-up and alignment.

Includes

• Photo-eye

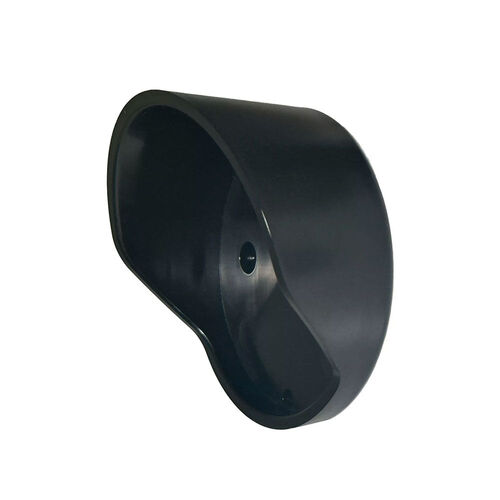

• Reflector with hood

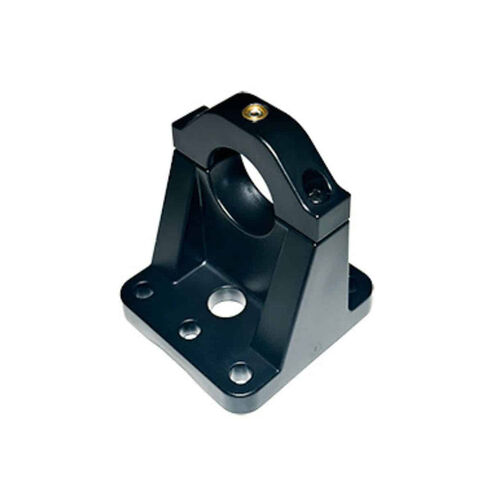

• Mounting bracket

Features

• 6 UL325 Monitoring Method
• Type B1, Non-Contact Sensor
• Operating Range up to 60 ft. (18.3m)
• Sensitivity Adjustment: Potentiometer

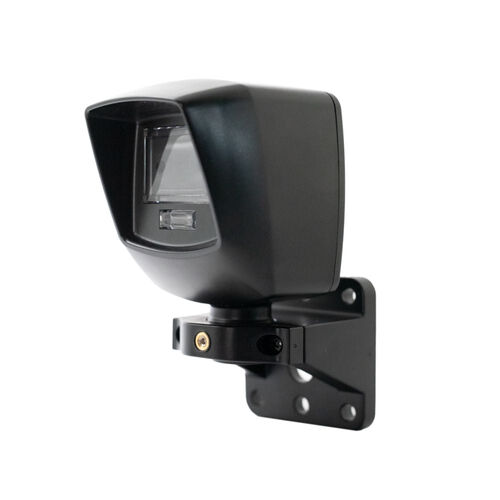

• Universal Mounting Bracket
• All Install Components Included
• Easy Alignment LED
• Integrated Sensor Hood

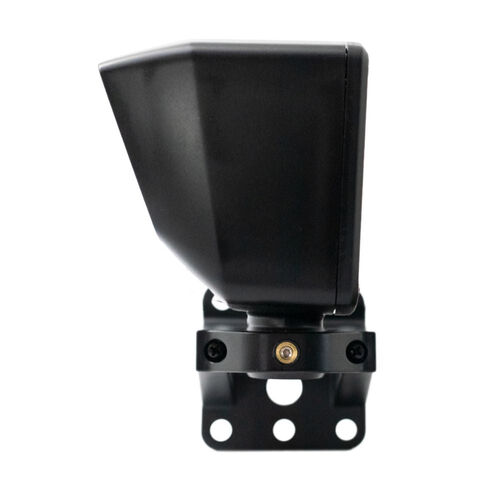

• Ball and Socket Bracket
• Reflector Extension Bracket Included
• Selectable STEALTH MODE (LED’s OFF)

Technical Features

• Operating Range: 5 ft (1.5 m) to 60 ft (18.3 m)
• Power: 6-40 VDC, 12-24 VAC
• Current (NC and 10K Monitoring Methods): 50 mA DC (relay activated)
• Current (Pulse Monitoring Methods): 15 mA DC
• Resistive Termination: 10K ohm across NO contact (switch selectable)
• Surge Protection: Thermal fuse, MOV
• Relay Output Operation: Light ON/Dark ON
• Response Time: 250ms
• Operating Temperature: -30° to 140°F (-34° to 60°C)
• Dimensions: (L x W x H) 5.1” (130 mm) x 3.15” (80 mm) x 5.5” (140 mm)
• Ball Joint Mount Conduit Thread: 1⁄2 Inch NPT

Product Literature

•  EMX Retro-Reflective Photo Eye Installation Manual
