PH12T

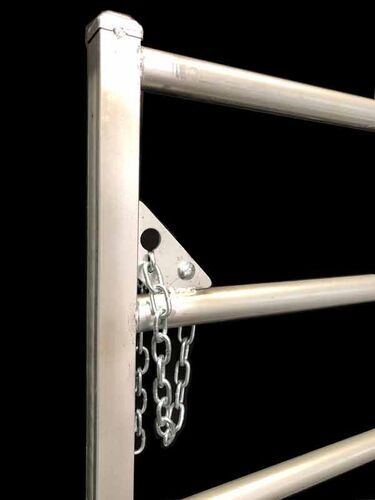

The PHT Series panel is heavy designed livestock panel used for working cattle pens, horse stalls, roping arenas, horse panels, turn out arenas, and in high pressure areas. The PHT panel is 6′ tall, 10′ or 12′ long, and weighs 108 pounds in the 10′ length and 126 pounds in the 12′ length. This panel features chain connectors which make setting up your pens on uneven ground easier. The PHT series, with the addition of Red River’s exclusive optional clamping system, will give your panels rigidity, making them more like a sight-built arena. The PHT Series livestock panel features 7 saw cut bars that are 1-1/2″ round 14 gauge, legs that 1-1/2″ square 16 gauge, and saddle cut 1″ square 16-gauge braces welded between each bar and finished with a steel dome cap on the top of the leg.
The PHT Series have matching 6′ or 10′ walk-thru gate, or a 6′ combo gate in overall 10′ or 12′ lengths. These fencing gates are double framed, designed to survive the work of your lifestyle for years to come. They have zinc-plated adjustable hinges to prevent sagging. The gates also feature a slam latch, making it easier to open and close gates via horseback. Our PHT steel horse panel will quickly become the industry standard with superior galvanized steel construction for any situation from ranch equipment to rodeo rodeo equipment.You can also find this panel featured in our Breaking Round Pen.

Height – 6′
Length – 10′ or 12′
Legs – 1 1/2″ Square Tubing 16ga.
7 Bars – 1 1/2″ Round Tubing 14ga.
Braces – 1″ Square Tubing 16ga.
Leg Top – Steel Dome Cap
Mud Leg – Yes
Approx. Weight – 126 lbs (12′)
Key Features – Galvanized, Heavy Duty Panel
Primary Use – Team Roping Arenas, Permanent Livestock Pens, Horse Stalls, Cattle Working Pens
